Offgridtec Solar Kit 100 WP – 12 V Solar System, Solar Module + Solar Charge Controller Steca 8 A 002640

This inexpensive starter set contains everything you need to charge a battery with solar power and insert this in a 12 V power to use. On the German charging regulator, Steca Solsum 8.8 °F means you can also use your 12 V consumers with power and a wide variety of practical functions. With this charge controller and the rest of the components can be a variety of small solar projects in a cost-effective way.
In addition to the module, charge controller and cable set also includes a number of other small items, the module connection cable to produce. Also offers a solid battery connection cable comes with the set.
Solar module data
Manufacturer/brand Offgridtec
MODULE Dimensions (H x W x D) 1005 x 670 x 35 mm
Max. Power (PM) 100 W Watt
Max. Voltage (VMP) 17,6 V
Max. Current (Imp) 5,68 a
Open Circuit Voltage (VOC) to V
Short circuit current (ISC) 6,14 a
Operation Temperature -40 ℃ Jet, Weight bearing capacity: up to + 85 ℃ Jet;
Cells Type Poly Crystalline
MODULE efficiency: 16.5%
Tolerance: + 1 – 2%
Weight: 8.2 kg
Connector Type/Plug Cable with MC, 4 pins (see product image)
The Charge Controller Steca Solsum 8.8 °F
System voltage: 12 V (24 V)
Power consumption < 4 mA
Open Circuit Voltage: Solar panel 12 V or 24 V DC; has an auto sensing
MODULE CURRENT: 8 A
DC Output side load current: 8 A
Ladeendspannung 13,9 V (27,8 V)
Boostla Despannung 14.4 V (28.8 V)
Wiederein switching voltage (LVR) 12.4 V 12.7 V (24.8 V 10 V)
Deep discharge protection (LVD) 11.2 V 11.6 V (22.4 V 23.2 V)
Please note the battery type can only be used with an optional accessory (Steca PA RC100) be changed. The Steca Solsum range is of a string made from to AGM/GEL BATTERIES.

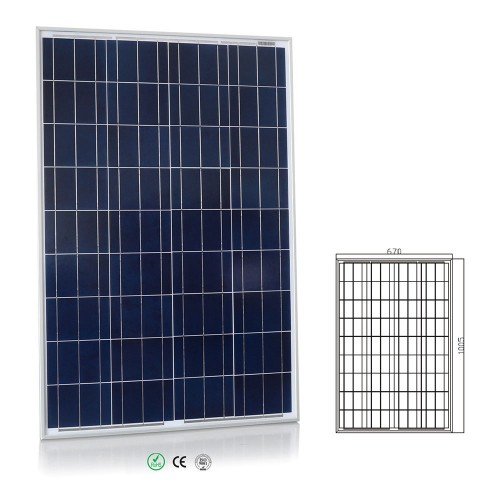

100WP 12 V solar panel poly with an extra-strong 35-mm aluminium frame and hailproof protective glass.
Steca Solsum 8.8F 12 V Charge Controller.

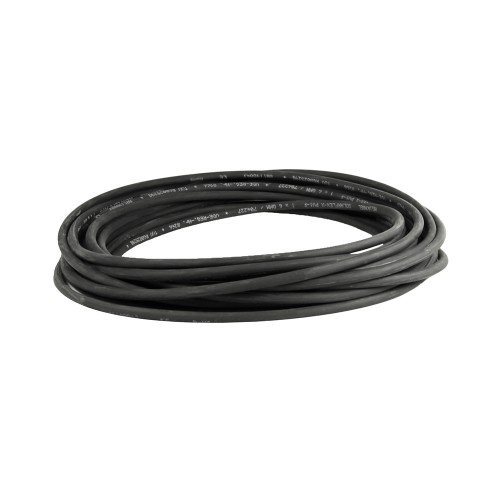

15 metre solar cable 4 mm² (for module connection cable).

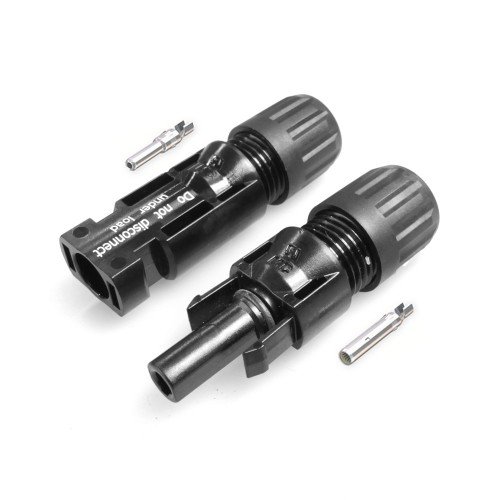

1 pair of genuine MC4 connectors from Multi Contact (for module connection cable) + 2 x wire ferrules 4 mm² for module connection cable.

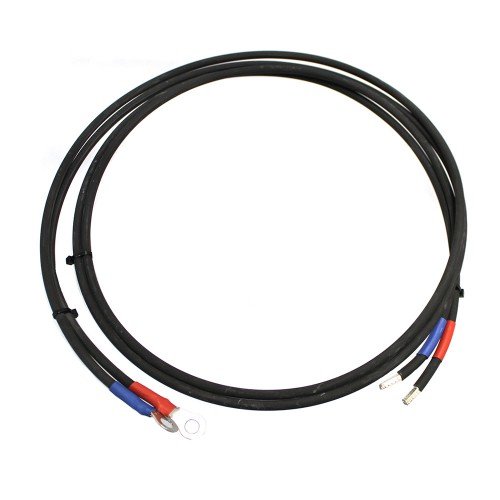

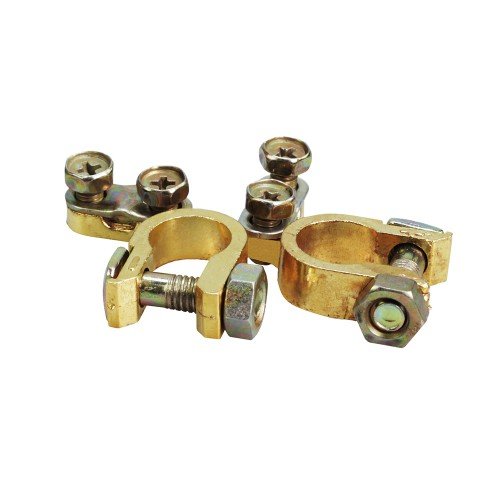

1 x battery connector cable 2×6 mm² with M8 ring terminals and wire ferrules on the charge controller side + battery terminal clamps.
