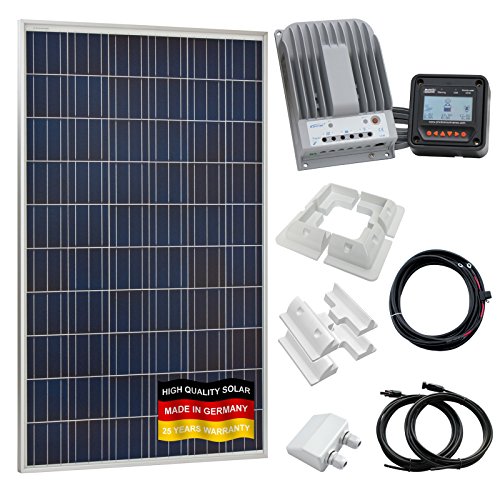

This 260W 12V/24V solar charging kit includes:
– 260W solar panel made in Germany to the highest European standards
– 20A 12V/24V high efficiency MPPT solar charge controller
– Remote LCD display with 5m cable
– Set of 4 corner and 4 side mounting brackets for bonding to the roof
– Waterproof cable gland
– 5m 4.0mm extension cable with waterproof MC4 connectors for the solar panel

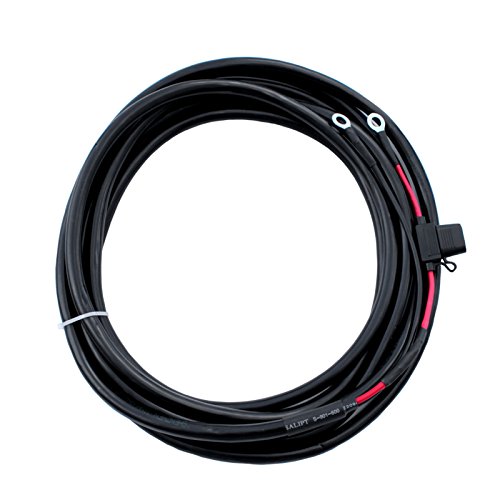

– 5m of 6.0mm twin core fused battery cable
This is one of the most powerful solar charging kits for vehicles, boats or off-grid power systems. It can generate up to 20A charging current when charging a 12V battery, so a typical 100Ah battery will be charged from 0% to 100% in only 5 hours of bright sunlight.
The 260W solar panel included in the kit comes with a full 5 year product warranty (workmanship warranty) and a 25 years performance warranty.

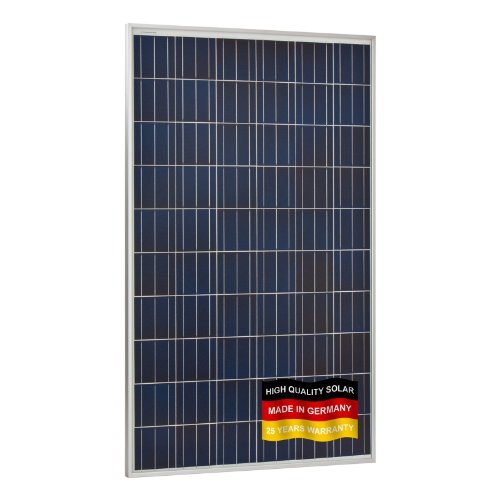

Solar panel specifications:
– Peak power: 260W
– Maximum power voltage: 30.7V
– Maximum power current: 8.45A
– Open circuit voltage: 37.4V
– Short circuit current: 8.9A
– Dimensions: 165.7 x 99.7 x 4.7 cm
– Weight: 21.9 kg
– Operating temperature: -40C to +85C
– Special tempered solar glass (4.0mm thick)

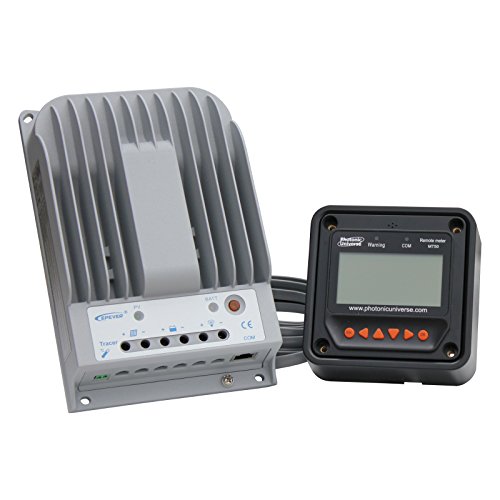

The solar charge controller included in the kit uses the most advanced Maximum Power Point Tracking (MPPT) technology to extract the maximum output from the solar panel. It comes with a full set of protection functions such as reverse current, over-charge, over discharge, over voltage, over load, short circuit and reverse polarity protection. The remote LCD meter can display various charging parameters such as voltage, current and the state of charge of the battery. The meter also allows adjustment of many charging settings.
Please note: this solar kit doesn’t include a sealant for bonding the brackets to the roof.
Please do not hesitate to contact Photonic Universe if you need advice about this product.
One of the most powerful solar charging kits for vehicles, boats or off-grid power systems, with a high efficiency 260W polycrystalline solar panel manufactured in Germany to the highest European quality and performance standards.
The solar panel has been made with special 4.0mm thick tempered solar glass which makes it much stronger and more durable compared to other solar panels with standard 3.2mm glass.
The robust waterproof design and strong aluminium frame ensure that the solar panel is suitable for all weather conditions, including inland or marine applications and countries with hot or cold climates.
High efficiency 20A MPPT solar charge controller included in the kit is designed to extract the maximum power from the solar panel for charging either a 12V or 24V battery.
The kit comes with a remote LCD display with 5m cable to show battery status and solar system performance, as well as for adjusting charging parameters … Scroll down to Product Description for more details.
