Complete 300W solar panel kit with 20A MPPT controller for charging a 12V/24V battery

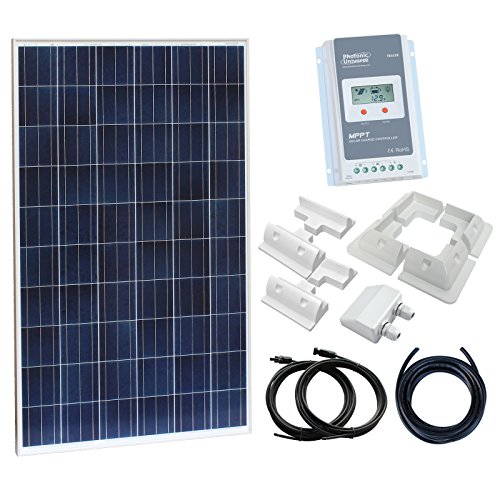

This 260W 12V/24V solar charging kit includes:

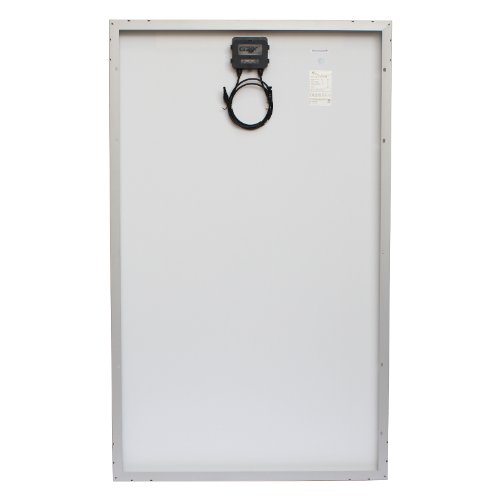

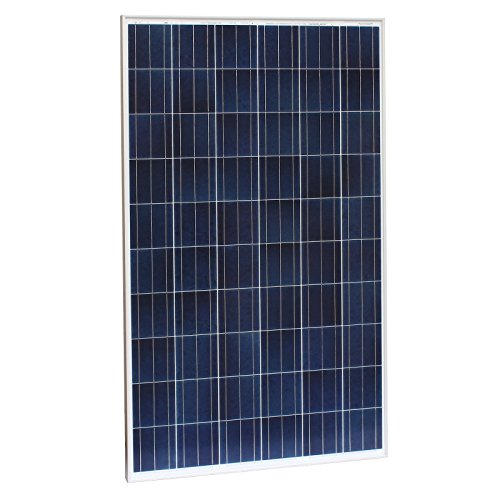

– High quality 260W polycrystalline solar panel
– 20A 12V/24V high efficiency MPPT solar charge controller with an LCD display

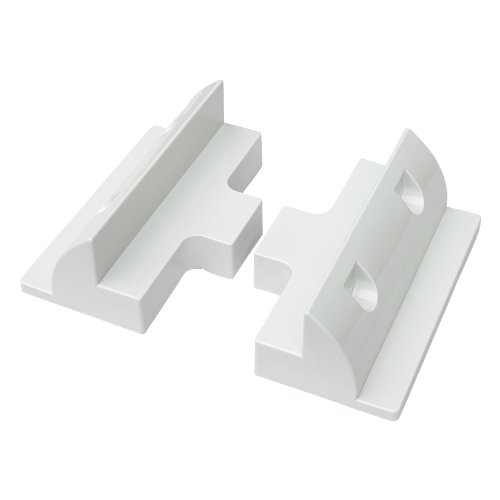

– Set of 4 corner and 4 side plastic mouting brackets for bonding to the roof
– Waterproof double entry cable gland

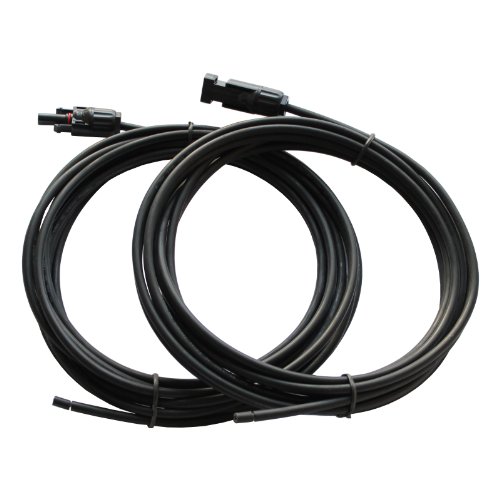

– 2 x 5m 4.0mm extension cable with waterproof MC4 connectors

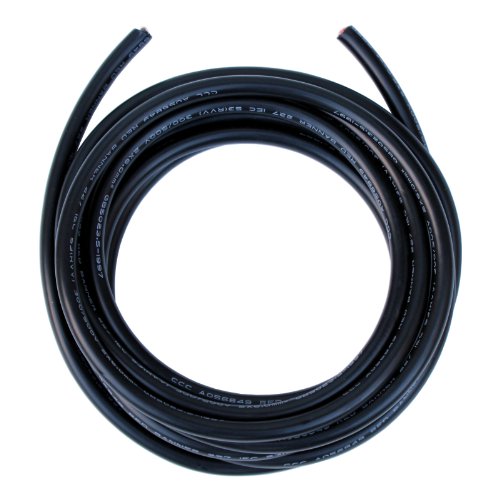

– 5m of thick 6.0mm twin core battery cable

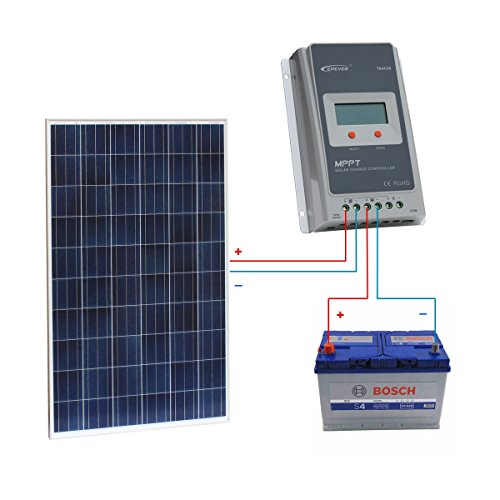

This is one of the most powerful solar charging kits for vehicles, boats or off-grid power systems. It can generate up to 17A charging current when charging a 12V battery, so a typical 100Ah battery will be charged from 0% to 100% in about 6 hours of bright sunlight.

The high efficiency polycrystalline solar panel included in the kit has been manufactured to the highest standards, thoroughly tested and labelled with a unique serial number for further quality control and increased warranty protection.

The solar charge controller included in this kit uses the most advanced Maximum Power Point Tracking (MPPT) technology to extract the maximum output from the solar panel. It comes with a full set of protection functions such as protection against reverse current, over-charge, over discharge, over voltage, over load, short circuit and reverse polarity. The LCD display shows various charging parameters such as voltage, current and power for the solar panel and the battery. An optional advanced remote LCD display can also be connected (not included, product code MT50).

Solar panel specifications:

– Peak power: 260W
– Maximum power voltage: 29.6V
– Maximum power current: 8.78A
– Open circuit voltage: 35.5V
– Short circuit current: 9.31A
– Power tolerance: 0/+3%
– Dimensions: 164 x 99 x 3.5 cm
– Weight: 17 kg

Please note: this solar kit does not include a sealant for mounting.

Please contact Photonic Universe if you have any questions about this product.
One of the most powerful solar charging kits for vehicles, boats and off-grid power systems – up to 17A charging current per hour in bright sunlight
High efficiency 20A MPPT solar charge controller with automatic 12V / 24V selection to extract the maximum power from the solar panel
Comes complete with all mounting brackets, cables, a waterproof cable gland, connectors, and a detailed user manual
Built-in LCD display shows real-time charging parameters such as voltage, current and power for the solar panel and the battery
