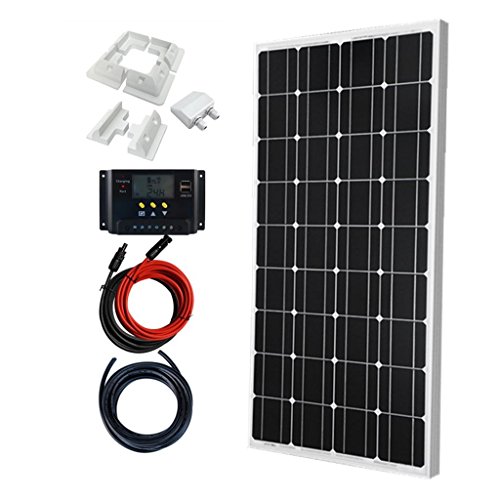

This Giosolar solar kit includes:
– High efficiency 100W monocrystalline solar panel with 90mm of special solar cable and waterproof connectors
– 20A 12V/24v solar charge controller with 2 USB port.
– Set of 4 corner plastic brackets for bonding to the roof
– Set of 2 side plastic brackets for stronger support
– Waterproof double entry cable gland
– 5m battery cable
– Pair of Extension cable Meter cable with MC4 connectors for easy connectivity (total approx 10 meter to connect solar panel to controller)
Solar Panel Specification:
– Maximum Power: 100W
– Maximum System Voltage: 1000V DC (IEC) / 600V DC (UL)
– Optimum Operating Voltage (Vmp): 18.17V
– Open-Circuit Voltage (Voc): 21.6V
– Optimum Operating Current (Imp): 5.51 A
– Short-Circuit Current (Isc): 6.06A
– Operating Temperature -40C¡«90C
– Dimensions: 1196X 541 X 30mm / 40 X 18 X 1 In
– Weight: 17.6 lbs (7.8KG)
– 4 mounting holes
– 90mm of special cable with MC4 connectors attached
Warranty
25-year transferable power output warranty: 5-year for 95% efficiency rate, 10-year for 90% efficiency rate, 25-year for 80% efficiency rate
5-year material and workmanship warranty
